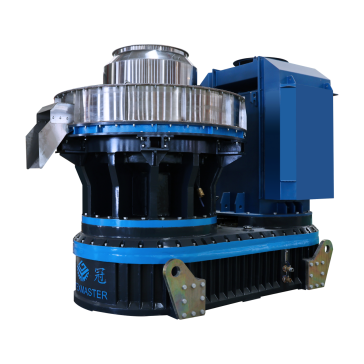

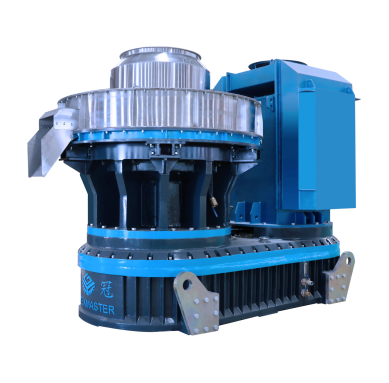

Introducing the 1280 Biomass Pellet Machine: Power, Precision, and Efficiency

Introducing the 1280 Biomass Pellet Machine: Power, Precision, and Efficiency

        In the fast-evolving biomass energy sector, the 1280 Biomass Pellet Machine stands out as a game-changer for large-scale pellet production. Designed to handle diverse raw materials like wood chips, agricultural residues (e.g., straw, rice husks), and forestry waste, this machine combines cutting-edge engineering with robust performance to meet industrial demands. Below, we delve into its features, innovations, and why it’s the ideal solution for biomass pellet manufacturers.

Key Advantages of the 1280 Biomass Pellet Machine

1. Unmatched Production Capacity

The 1280 Biomass Pellet Machine boasts an impressive output of 12–15 tons per hour, making it one of the most powerful biomass pellet machines in its class. Equipped with an 800KW/1000KW (10KV) high-voltage motor, this 45-ton heavyweight ensures stable, high-efficiency operation even under continuous workloads. Its design caters to large factories and biomass energy plants seeking to maximize productivity.

2. Reinforced Gearbox for Longevity

The gearbox is the heart of the machine, and our engineers have optimized it for durability and precision:

——Optimize the casting process: V-method casting is adopted, the density of the box structure is increased, the hardness is uniform, and the "base" is more stable;

——Strengthen quality inspection: the gearbox adds three-coordinate detection to ensure the accuracy of processing and subsequent assembly;

——Refine the assembly process: the bolts are tightened with equal torque during the processing of the gearbox and the subsequent assembly of the whole machine to ensure the consistency of assembly;

——Optimize the design of the bearing cover: the bearing covers of the second and third axes of the gearbox are upgraded to an adjustable structure to ensure the bearing clearance;

——Optimize the design of the heat dissipation structure of the box: the number of fins of the box is increased by nearly 1 times, the heat dissipation area is increased, and the heat dissipation of the box is improved;

——Optimize the appearance design: the eyebolt is changed to a plate-type lifting lug; the upper box corners are passivated and the transition is smooth, which is more beautiful.

3. High-Strength Transmission Gear System

Precision gears are critical for smooth operation. The 1280 model features:

——Optimize gear processing technology: change from split gear grinding to integral gear grinding to ensure tooth profile accuracy and gear assembly accuracy, and reduce operating noise;

——Full upgrade of gear sets: optimize gear modulus, increase gear width, improve gear strength, and extend gear life; optimize gear tooth count, adjust three-stage gear ratio, and make the reduction ratio distribution more reasonable to improve operating stability.

4. Robust Main Shaft & Bearing Chamber

——The main shaft adopts the integral forging process, and the main shaft and spline shaft are integrated into an integrated structure. The design calculation data is enlarged, and the strength calculation of each main component is based on 2.5 times the output torque of the 1000KW motor to match the design calculation;

——Optimize the main shaft sealing structure: the bearing chamber lubrication system is changed to a fully sealed design, and a customized shaft seal is added to prevent dust from entering and extend the service life of the bearing.

5. Optimized Roller Shaft & Lubrication

——Optimize the design of the oil injection pipeline: reasonably design the diameters of the upper and lower oil ports to ensure balanced oil distribution and stable oil output;

——Optimize the oil injection process parameters: adjust the oil injection cycle and duration of the dry oil pump to ensure the lubrication effect.

6. Intelligent Automatic Lubrication System

——Optimize the design of circulating lubricating oil pipeline: customized pipe configuration, more balanced oil distribution;

——Optimize oil flow detection: the main pipeline is equipped with an oil flow signal device to achieve online monitoring and ensure the smooth flow of the oil circuit; the bearing chamber oil circuit is equipped with a visual oil viewer for intuitive monitoring.

Ideal Raw Materials for the 1280 Biomass Pellet Machine

This machine is engineered to process a wide range of biomass feedstocks, including:

Wood Waste: Sawdust, wood chips, bark.

Agricultural Residues: Straw, corn stalks, rice husks.

Energy Crops: Miscanthus, switchgrass.

Forestry Byproducts: Pine needles, branches.

Its versatile design accommodates varying moisture levels and material densities, ensuring consistent pellet quality.

Conclusion

The 1280 Biomass Pellet Machine redefines industrial pellet production with its blend of power, precision, and innovation. Whether you’re processing wood, agricultural waste, or energy crops, this machine delivers unmatched efficiency and reliability. As a leader in biomass pellet machine technology, we invite you to explore how the 1280 model can elevate your operations.
